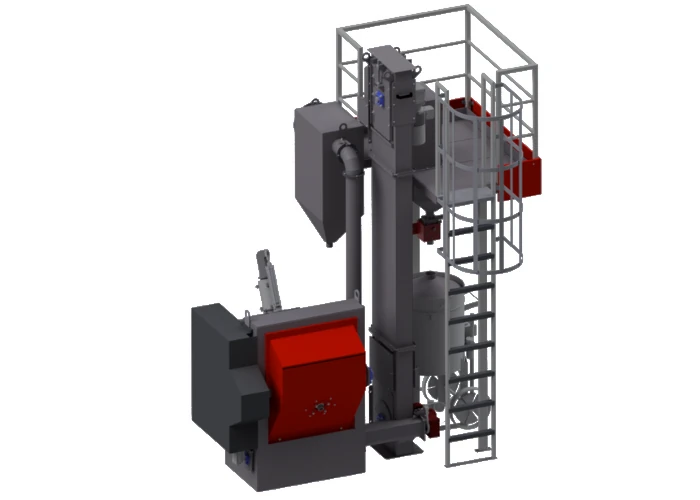

Shot blasting machine with rotating barrel Type HR-1B

Shot blasting machine with rotating barrel is suitable for cleaning smaller castings, forgings, parts after heat treatment and machine parts in repair workshops.

Workpieces

Castings

Castings

Forged parts

Forged parts

Heat treated parts

Heat treated parts

Applications

  • Sand and cores removal
  • Rust and scale removal

Advantages & features

  • No foundations required
  • Minimum floor space required
  • Easy installation
  • Easy startup

About

Shot blasting machine with rotating barrel is suitable for cleaning smaller castings, forgings, parts after heat treatment and machine parts in repair workshops.

Workpieces are cleaned with the help of a blasting wheel and by mutual friction when rolling in a rotary drum. The workpieces to be cleaned are loaded in the drum manually or with the loader. When emptying, we tilt the drum into a certain position and the objects fall into the crate. When filling with a loader, we achieve partially automated cleaning process.

Machines’ housing is protected by wear-resistant manganese steel liners. High efficiency of the tumble blast machine is enabled by the continuous abrasive handling and reclamations system for continued returning and cleaning of blasting media, along with efficient blasting wheels made from wear-resistant materials.

Need more information? We are here for you.

Contact us

Technical data

Machine type HR-1B (VB-40)
Max load volume (l) 40
Max load capacity (kg) 80
Drum diameter (mm) 600
Min workpiece diameter (mm) 6
Max workpiece diameter (mm) 100
Blasting wheels power (kW) 5.5
Blasting wheel diameter (mm) 320

For additional information on different dimensions of shot blasting machine and the number of blasting wheels, please contact us. The machines listed are only an example of standard machines, but other adaptations and variants are available.
