Shot blasting machine with rotating drum Type VB

Shot blasting machine with rotating drum is designed for shotblasting small to medium-sized workpieces that are produced in small or medium-sized batches.

Workpieces

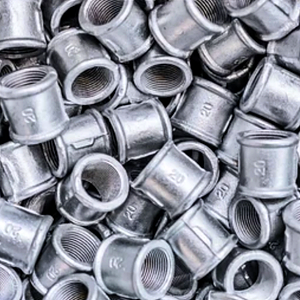

Castings

Castings

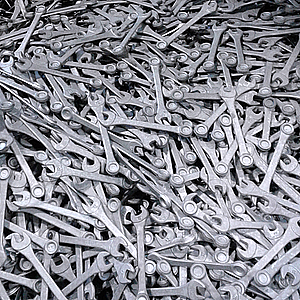

Forgings

Forgings

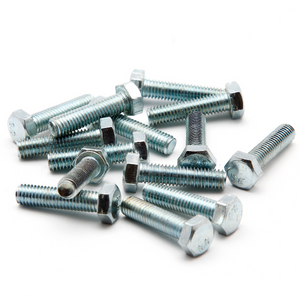

Heat treated parts

Heat treated parts

Applications

  • Cleaning
  • Sand removal
  • Rust and scale removal

Advantages & features

  • Three-dimensional movement, rolling of workpieces for optimal shotblasting
  • No pinch points
  • Partially automated process

About

Shot blasting machine with rotating drum is designed for shotblasting small to medium-sized workpieces that are produced in small or medium-sized batches.

The drum has a special shape with a “triangle” in the middle. This results in a three-dimensional movement, the rolling of the pieces, which allows optimal shotblasting / processing of the workpieces.

The shot blasting machine with rotating drum is made from one piece, which means there are no points where workpieces can get stuck. The drum is usually made of manganese steel, but it can also be covered with a polyurethane coating, which enables even greater wear resistance in demanding working environments.

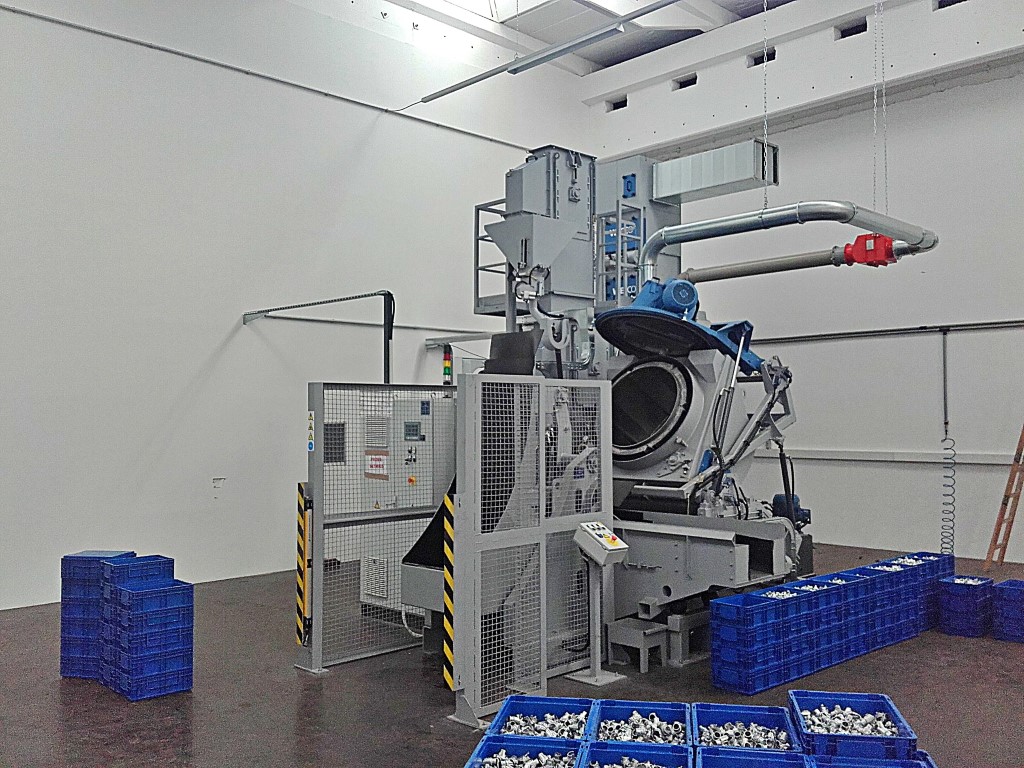

The workpieces are loaded into the machine manually or by forklift. The process can be partially automated by loading the workpieces into the drum with the help of a hydraulic loader placed in front of the machine, and when emptying, they are loaded directly into the boxes or onto the vibrating conveyor, which is located between the machine and the loader. The blasting wheel is installed on the cover of the drum in order to achieve greater shotblasting efficiency.

Need more information? We are here for you.

Contact us

Technical data

Machine type VB-40 VB-80 VB-150 VB-250 VB-450 VB-750 VB-1100
Max load volume (l) 40 80 150 250 450 750 1100
Max load capacity (kg) 80 200 400 700 1200 2000 3000
Drum diameter (mm) 600 850 850 1200 1200 1500 1700
Min workpiece diameter (mm) 6 8 8 8 12 12 12
Max workpiece diameter (mm) 100 150 150 300 300 400 400
Blasting wheels power (kW) 5.5 7.5 7.5 15 / 22 15 / 30 22 / 30 2 x 22
Blasting wheel diameter (mm) 320 320 320 380 380 380 380

For additional information on different dimensions of shot blasting machine and the number of blasting wheels, please contact us. The machines listed are only an example of standard machines, but other adaptations and variants are available.
