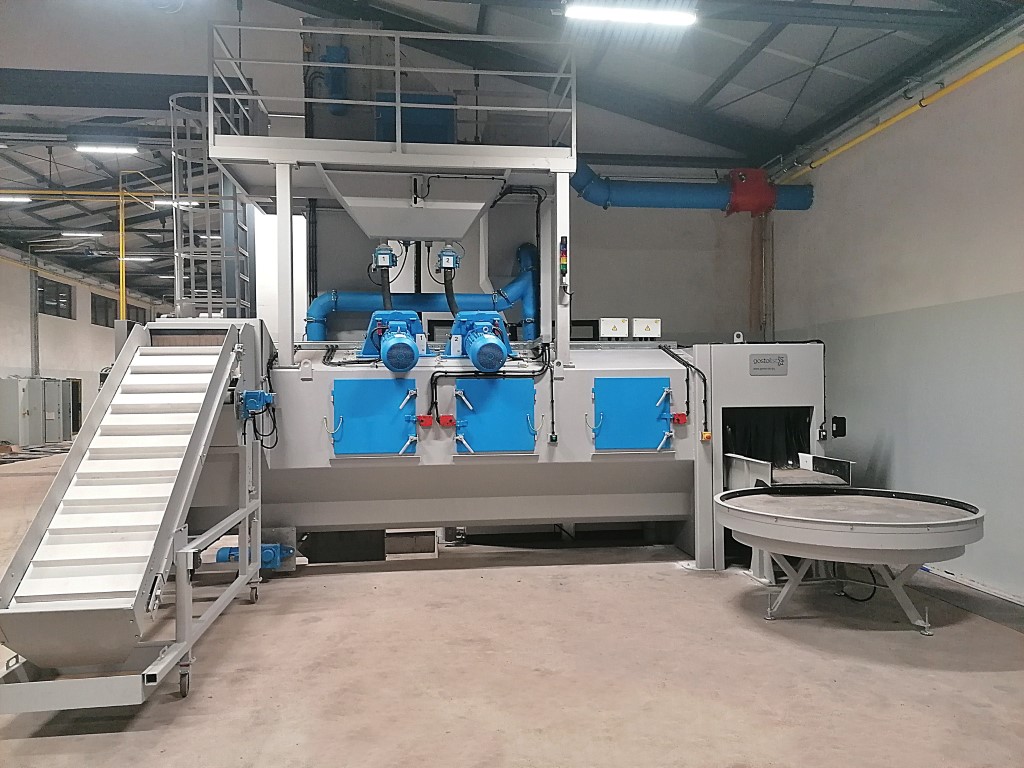

Continuous tumble belt blast machine Type GPP

Continuous tumble belt blast machine is ideal for shotblasting serially produced workpieces, as well as for delicate, large components with demanding geometry.

Workpieces

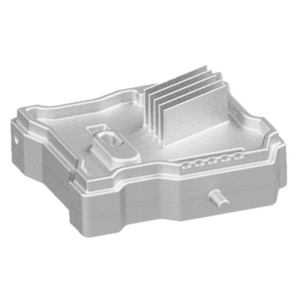

Sensitive parts

Sensitive parts

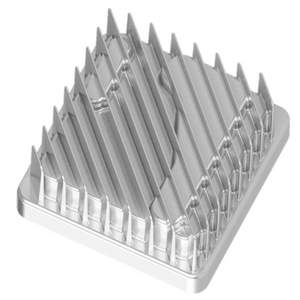

Castings

Castings

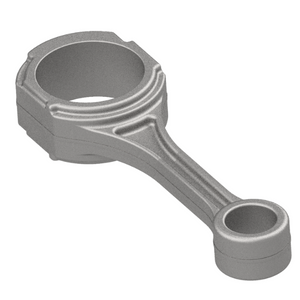

Forged parts

Forged parts

Applications

  • Sand and cores removal
  • Rust and scale removal

Advantages & features

  • Can be integrated into an automatic production line (automatic loading and unloading of workpieces)
  • Controlled transport of workpieces through the machine
  • Easy maintenance of caterpillar tracks

About

Continuous tumble belt blast machine is ideal for shotblasting serially produced workpieces, as well as for delicate, large components with demanding geometry. The weight of workpieces can vary between a few grams and up to 50 kg.

Workpieces continuously enter the machine and thus also travel through the machine. In contrast to conventional batch tumble belt machines, there are no major height drops that could cause injury to the workpieces. The workpieces move slowly forward and simultaneously rotate. Thanks to the advanced caterpillar system, workpiece transport is precise and the same for all workpiece shapes. The cleaning – shotblasting – of the workpieces is double, from rolling and from the impact of abrasive.

Caterpillar tracks can be pulled out of the machine for easy maintenance.

The quality of shotblasting is better than with batch tumble belt machines or spinner hanger machines, while less energy is used for blasting wheels. The reason for high shotblasting efficiency and relatively low energy consumption is the short distance between the blasting wheels and the workpieces. This enables optimal use of energy with very low energy losses compared to other types of shot blasting machines. To achieve the same efficiency, for example, spinner hanger machine would use 50 – 80% more energy.

It is a highly productive continuous machine that can be placed in a line, where workpieces can be continuously loaded or unloaded. Loading and unloading of workpieces can be manual or automated.

Need more information? We are here for you.

Contact

Technical data

Machine type GPP-300/2 GPP-400/2 GPP-500/2 GPP-500/4 GPP-700/4 GPP-700/5
Working drum diameter (mm) 300 400 500 500 700 700
Min workpiece thickness (mm) 10 10 10 10 10 10
Min workpiece length (mm) 25 25 25 25 25 25
Max workpiece diameter (mm) 100 250 350 350 650 650
Max length of workpiece (mm) 200 500 650 650 650 650
Max load capacity (kg/h) - Steel 2500 3500 5000 6000 9000 10000
Max load capacity (kg/h) - Aluminium 750 1050 1050 1800 2700 3000
Max load capacity (kg/h) - Zinc 1850 2620 3700 4500 6700 7500
Max load capacity (kg/h) - Brass 2500 3500 5000 6000 9000 10000
Max load capacity (kg/h) - Magnesium 450 628 900 1050 1650 1800
Blasting wheels power (kW) 2 x 7.5 3 x 7.5
3 x 11
4 x 7.5
4 x 11
4 x11
4 x 15
4 x 11 5 x 15
5 x 22
Blasting wheel diameter (mm) 320 320 320 380 380 380

For additional information on different dimensions of shot blasting machine and the number of blasting wheels, please contact us. The machines listed are only an example of standard machines, but other adaptations and variants are available.
