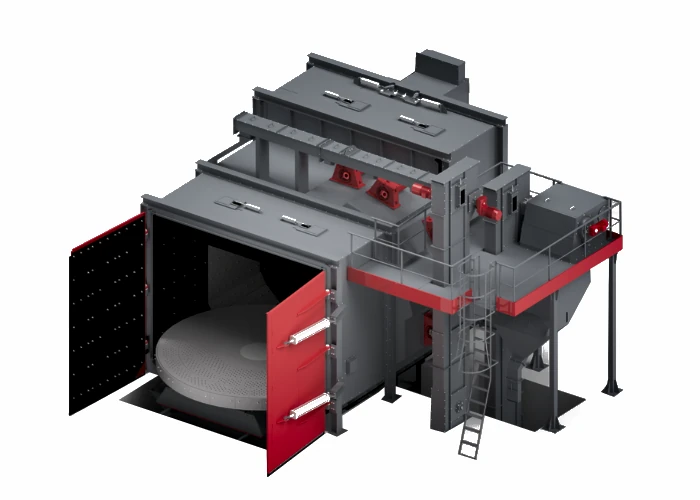

Bogie table shot blasting machine Type KOM

Bogie table shot blasting machine is designed for cleaning large and heavy workpieces of complicated shapes produced in small series or individual production.

Workpieces

Castings

Castings

Forgings

Forgings

Complicated shape

Complicated shapes

Applications

  • Cleaning
  • Rust and scale removal
  • Corrosion removal
  • Paint stripping
  • General surface preparation for painting

Advantages & features

  • Easy loading / unloading of workpieces
  • More efficient than manual air blasting
  • Ideal for heavy workpieces

About

Bogie table shot blasting machine is designed for cleaning large and heavy workpieces of complicated shapes produced in small series or individual production.

Transport bogie with a rotary table enables easy loading / unloading and safe transport of workpieces to and from the machine. The workpieces are loaded onto the perforated rotary work table outside the blasting chamber by crane and then by bogie transported into the machine.

It is desirable to cover as much of the table surface as possible with the workpieces. During the shotblasting, the workpieces on the rotary table move through the jets of blasting media of the blasting wheels that are installed at different angles, which allows greater efficiency.

You must turn over the workpieces and then repeat the shot blasting process or in some cases, additional air blasting is performed manually by an operator. With this, we achieve complete cleaning of all areas of the workpiece.

The housing of shot blasting machine is made of sheet metal and profiles in three welded segments, which together form a chamber. The interior of shot blasting chamber is additionally protected by wear-resistant shields made of manganese steel. The system for continuous return and cleaning of the abrasive, together with efficient blasting wheels made of wear-resistant materials, enable the high performance of the shot blasting machine.

Need more information? We are here for you.

Contact us

Technical data

Machine type KOM-3000x1500 KOM-4500x3000 KOM-5000x4000
Max weight of the workpiece (kg) 15,000 25,000 50,000
Max workpiece diameter (mm) 3000 4500 5000
Blasting wheels power (kW) 3 x 22 5 x 22 6 x 22
Blasting wheel diameter (mm) 380 380 380

For additional information on different dimensions of shot blasting machine and the number of blasting wheels, please contact us. The machines listed are only an example of standard machines, but other adaptations and variants are available.
