Continuous wire descaling shot blasting machine Type PZP

Continuous wire descaling shot blasting machine is designed for continuous removal of scales and shotblasting of wire / bars of various shapes (round, square or hexagonal), cross-section from 5 to 80 mm, and for preparation for further operations such as drawing, rolling, electroplating, etc.

Workpieces

Wire

Wire

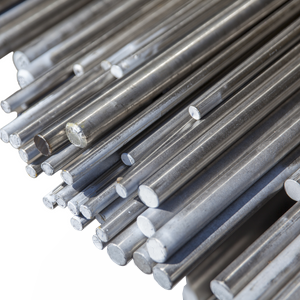

Round bars

Round bars

Applications

  • Cleaning
  • Corrosion removal
  • Rust and scale removal
  • General surface preparation prior drawing, rolling, electroplating, etc.

Advantages & features

  • Can be integrated into an automatic production line
  • Many options according to the customer’s requirements
  • Maximum energy utilization due to use of guide plates

About

Continuous wire descaling shot blasting machine is designed for continuous removal of scales and shotblasting of wire / bars of various shapes (round, square or hexagonal), cross-section from 5 to 80 mm, and for preparation for further operations such as drawing, rolling, electroplating, etc.

Options before / after shotblasting:

  • Installation in-line
  • Loading of workpieces
  • Roller guidance at the entrance / exit
  • Handling of workpieces
  • Cutting of workpieces
  • Painting
  • Packing of workpieces

The machine has guide plates made of hard wear-resistant material (hardened tool steel) that narrow the abrasive jet (by rebound) from the normal width of 60 mm to the width of the workpiece. This directs the energy of the abrasive to the workpiece and achieves the maximum utilization of the machine.

Machine versions with 3, 4 or 6 blasting wheels are available. The number and power of the blasting wheels is determined according to the thickness of the wire / bars and the speed of the wire / bars through the machine.

The inlet and outlet sealing chamber is sealed with screens that keep the abrasive in the shot blasting machine. The robust housing of the machine is protected by wear-resistant manganese steel plates in the shotblasting chamber.

Need more information? We are here for you.

Contact us

Technical data

Machine type PZP-20 PZP-30
Wire diameter (mm) 5 - 20 5 - 30
Wire transport speed (at max cross-section) (m/min) up to 20 up to 60
Blasting wheel diameter (mm) 320 380
Blasting wheels power (kW) 3 x 7.5 3 x 15

For additional information on different dimensions of shot blasting machine and the number of blasting wheels, please contact us. The machines listed are only an example of standard machines, but other adaptations and variants are available.
