Stubs shot blasting machine Type PAP

Stubs shot blasting machine is designed for cleaning remains of hydrated alumina from spent stubs, which are used in the aluminium production. The machine removes the rest of the bath from all sides of the spent stubs.

Workpieces

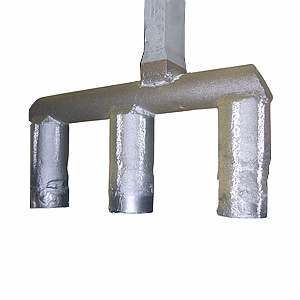

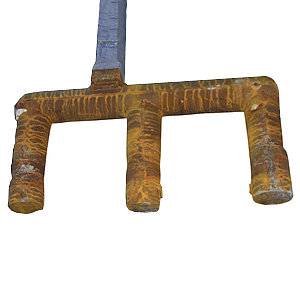

Stub

Stub

Stub

Stub

Applications

  • Cleaning remains of hydrated alumina

Advantages & features

  • Custom made solution
  • Highly efficient blasting wheels
  • Robust machine design and housing

About

Stubs shot blasting machine is designed for cleaning remains of hydrated alumina from spent stubs, which are used in the aluminium production. The machine removes the rest of the bath from all sides of the spent stubs.

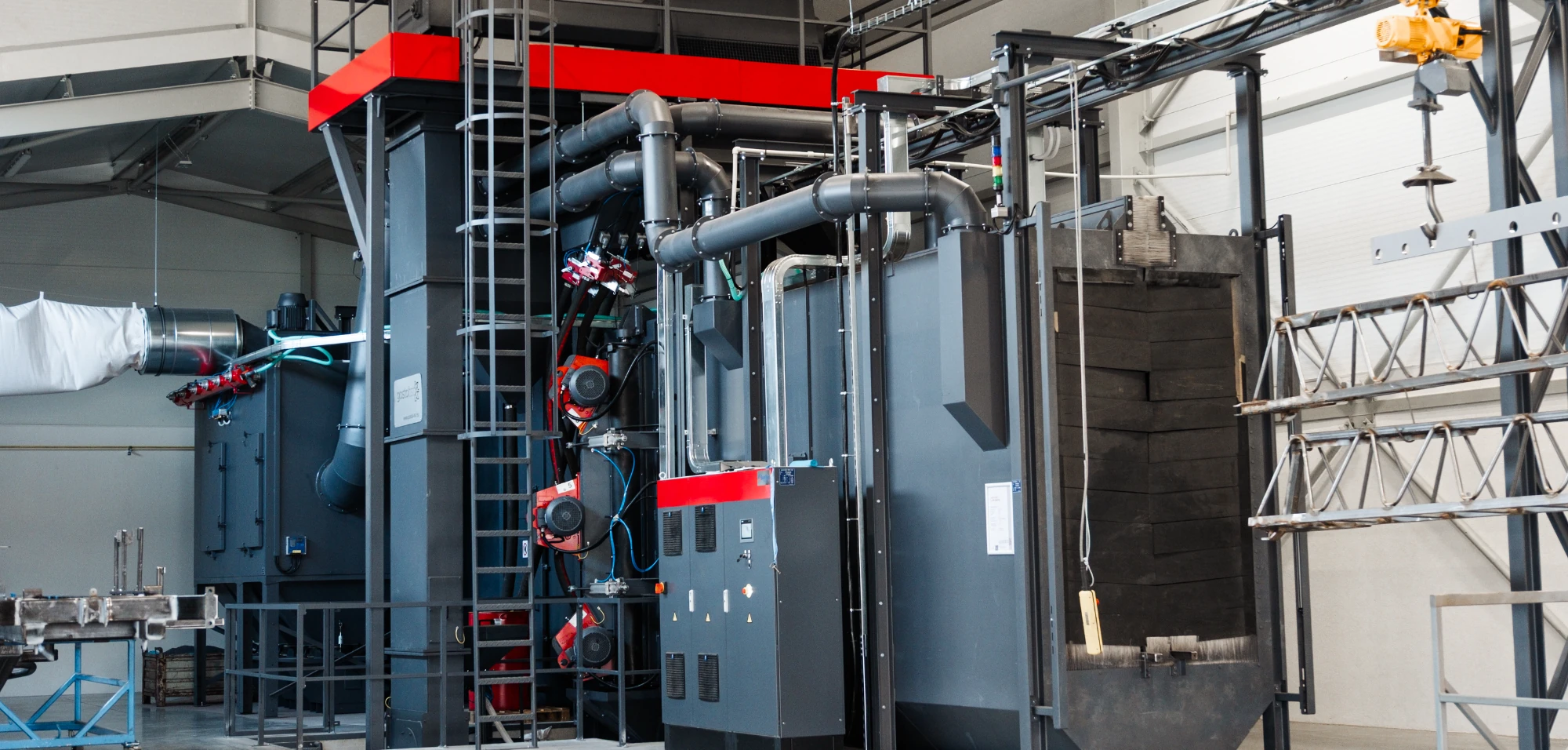

Stubs shot blasting machine is a chamber type machine with a non-continuous shotblasting mode of operation. The workpieces are hanged to power and free conveyor hook, which moves in the central part of the machine. To increases the process efficiency the workpiece is rotated during the shotblasting.

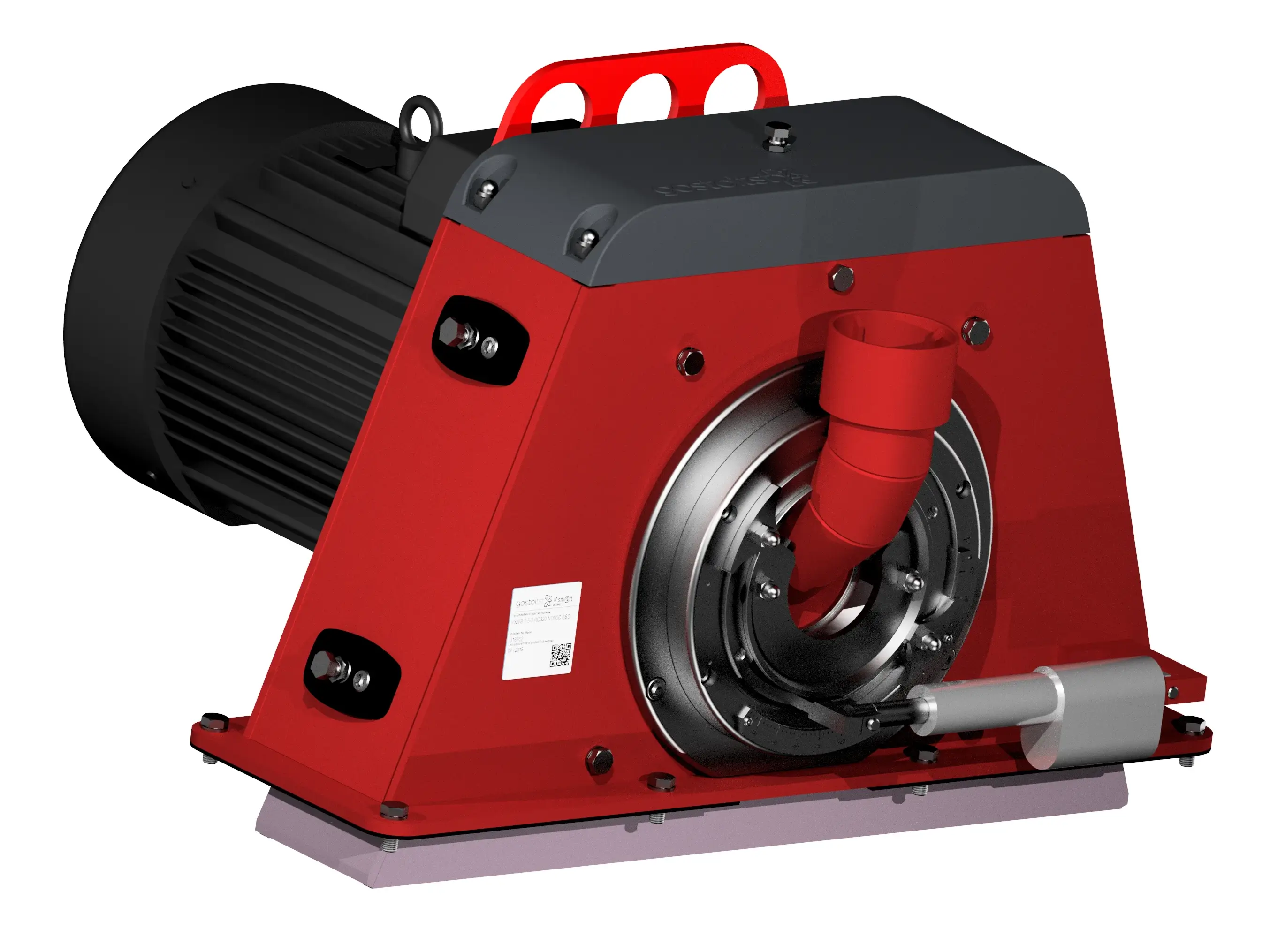

To reduce wear on the machine, all sides of shot blasting chamber are covered with wear resistant manganese steel plates. The system for continuous return and cleaning of the abrasive together with efficient blasting wheels made of wear resistant materials enable high efficiency of the shot blasting machine.

Need more information? We are here for you.

Contact us

Technical data

Machine type PAP PAP
Workpiece anode holder anode holder
Machine capacity (pc/h) 40 30
Workpiece movement during shotblasting rotation vertical movement
Blasting wheel power (kW) 5 x 15 4 x 22
Blasting wheel diameter (mm) 380 380
